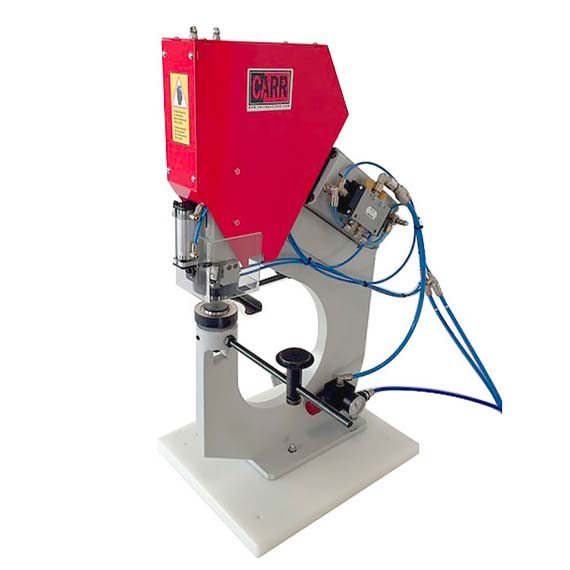

MP26 Manual Pneumatic Grommet Setting Machine

mp26-eyelet-setting-machine-570x570

Model MP26

Heavy duty manually loaded pneumatic machine with unique frame design for setting at long distances from the edge of material. Suitable for a wide range of sizes including curtain eyelets, foot pedal operation.

  • Cuts hole and makes setting in one cycle
  • Unique frame design provides for wide range of setting positions
  • Grommet sizes up to #5 Stainless Steel and 40mm Curtain Grommets (more powerful machine for setting 66mm available on request)
  • Easy tooling changes to suit mulitiple sizes with optional tool sets
  • Positioning device for consistent spacing of settings
  • Safe and easy to use

PDF Datasheet

Technical Specifications

FeatureImperialMetric
Grommet size (hole diameter) – SS5/16″ – 3/4″8 mm – 20 mm
Grommet size (hole diameter) – Brass5/16″ – 2 – 9/16″8 mm – 66 mm
Throat depth7 – 1/16″180 mm
Machine weight62 lbs28 kgs
Machine size (DxWxH)17″ x 6″ x 25″43 cm x 15 cm x 63 cm
Working air pressure80 – 100 psi6 – 7 bar
Air consumption per cycle0.046 ft31.3 L
Cycles per minute30
Electrical devicesLaser pointer (optional)
