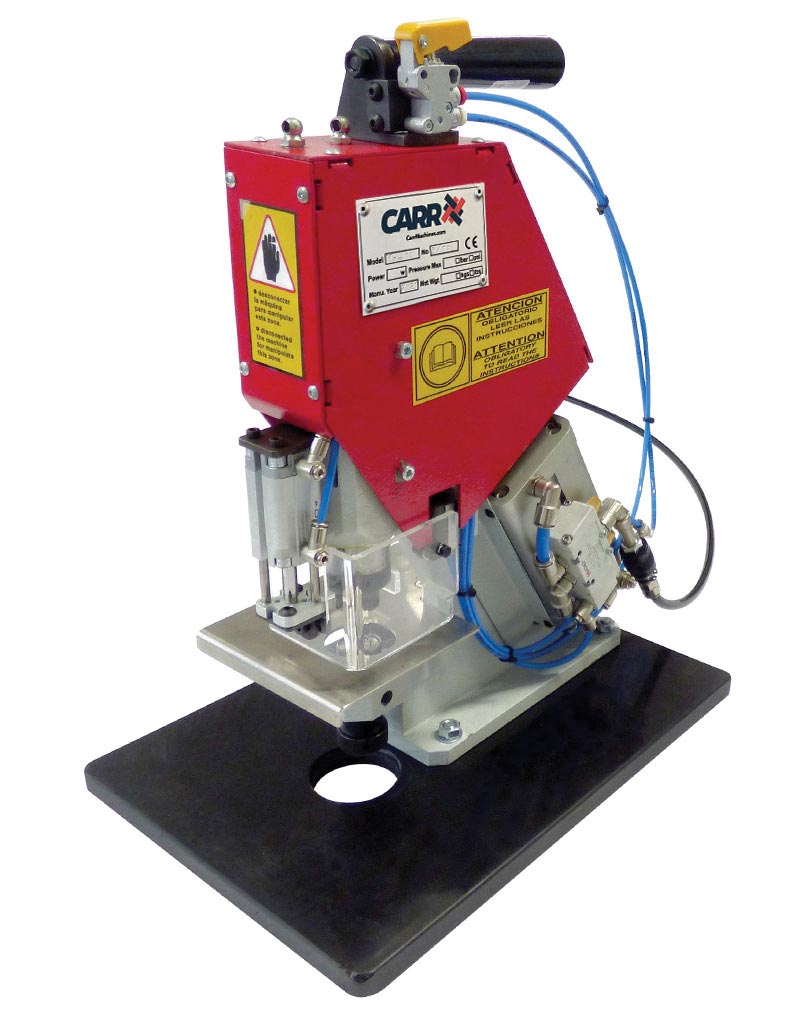

MP10-X Portable Pneumatic Eyelet Setting Machine


Model MP10-X

Portable manually loaded pneumatic machine with hand trigger operation.

  • Cuts hole and make setting in one cycle.
  • Grommet sizes up to #4 Stainless Steel and #5 Brass
  • Easy tooling changes to suit multiple sizes with optional tool sets
  • Safe and easy to use

PDF Datasheet

Technical Specifications

Grommet size (hole diameter) – SS1/4″ – 1/2″6 mm – 13 mm
Grommet size (hole diameter) – Brass1/4″ – 5/8″6 mm – 16 mm
Throat depth2 – 3/8″60 mm
Machine weight25 lbs11 kgs
Machine size (DxWxH)17″ x 6″ x 12″43 cm x 15 cm x 30 cm
Working air pressure80 – 100 psi6 – 7 bar
Air consumption per cycle0.018 ft30.5 L
Cycles per minute30
Electrical devicesLaser pointer (optional)
