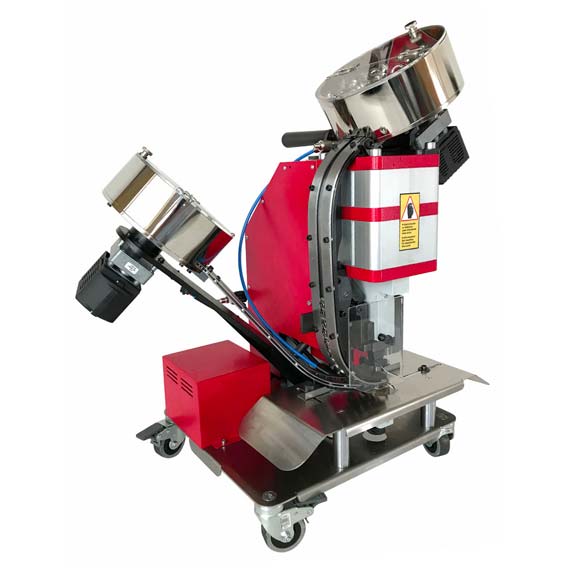

AP45P Fully Automatic Plastic Grommet Setting Machine



Setting Machine for Plastic Grommets & Washers

Economical fully automatic feed (eyelets and washers) machine for small to medium sizes, direct drive pneumatic cylinder for cutting material and setting, electric motor driven parts movement. Washer detector mechanism that prevents the machine from setting a grommet without a washer.

  • Feeds grommet and washer, cuts hole and makes setting in one cycle
  • Direct drive pneumatic cylinders reduce mechanical complexity
  • Plastic grommet sizes from 8 mm up to 12 mm
  • Electronic washer detector and slide mechanism for perfect washer placement
  • Positioning device for consistent spacing of settings
  • Safe and easy to use

PDF Datasheet

Technical Specifications

Grommet size (hole diameter) – Plastic5/16″ – 15/32″8 mm – 12 mm
Throat depth2 – 3/8″60 mm
Machine weight154 lbs70 kgs
Machine weight (bench model)220 lbs100 kgs
Machine size (DxWxH)24″ x 17″ x 28″60 cm x 43 cm x 69 cm
Machine size on bench (DxWxH)34″ x 26″ x 60″85 cm x 66 cm x 152cm
Working air pressure80 – 100 psi6 – 7 bar
Air consumption per cycle0.081 ft32.3 L
Cycles per minute50
Electrical devicesLaser pointer (optional)
